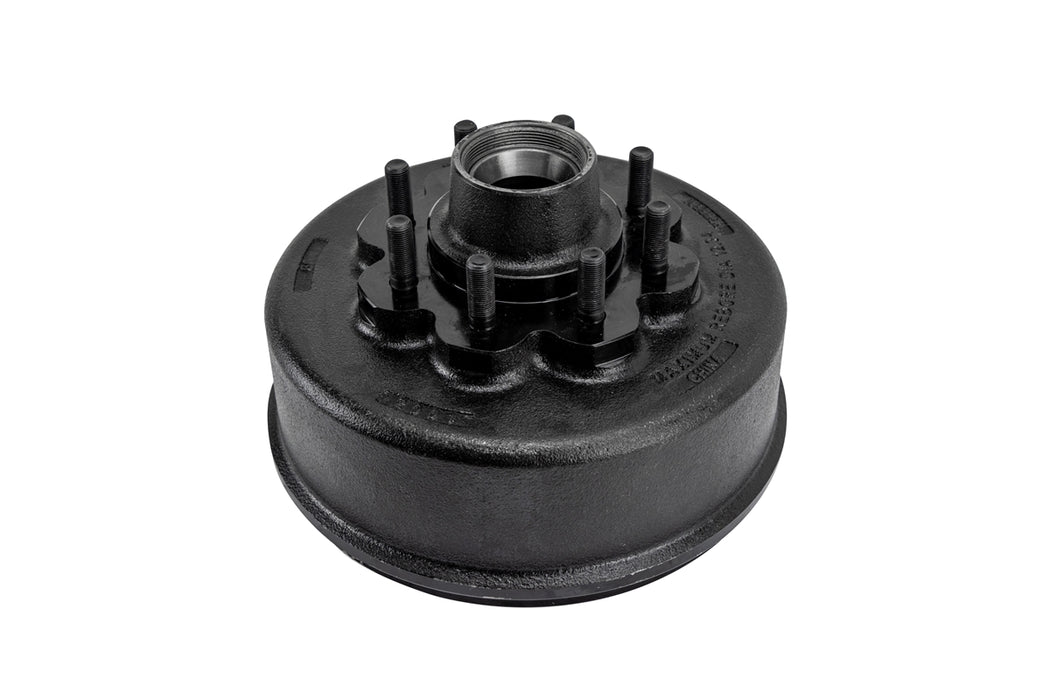

008-285-10 – Oil Hub & Drum Assembly, 8 on 6.5″ (5/8″ Studs)

The 008-285-10 Oil Hub & Drum Assembly is a heavy-duty oil-lubricated (oil bath) hub and brake drum combination designed for trailers using 8-lug (8 on 6.5″) wheels with 5/8″ wheel studs. Oil-bath lubrication provides continuous bearing lubrication and heat dissipation, making it ideal for higher-duty or high-mileage applications.

Commonly used on Larson Cable Trailers, this assembly is well-suited for axle service, brake replacement, or complete wheel-end rebuilds where oil-lubricated hubs are specified.

Specifications

• Part Number: 008-285-10
• Component Type: Hub & drum assembly
• Lubrication Type: Oil bath
• ABS Compatible: No
• Bolt Pattern: 8 on 6.5″
• Wheel Stud Size: 5/8″-18
• Brake Drum Size: 12-1/4″ x 3-3/8″
• Material: Cast iron drum with steel hub
• Application: Heavy-duty trailer axle wheel end

(Bearings, races, seal, oil cap, and plug sold separately.)

Fitment

• Designed for 8-lug trailer wheels (8 on 6.5″)
• Commonly used on 7,000–8,000 lb axle applications
• Compatible with 12-1/4″ x 3-3/8″ brake assemblies
• Requires oil-bath bearings, seal, and oil cap compatible with the spindle

Notes

• Hub & drum assembly only
• Oil-lubricated design supports extended service intervals
• OEM-style replacement component
• Fill with manufacturer-recommended hub oil after installation
• Torque wheel and axle hardware to manufacturer specifications
